RPDU

Tech Specs       Data Sheet       Brochure

The RPDU is a multiple racks mountable high-density power distribution system, designed to provide manageable and flexible power to multiple racks in a data center.

TECHNOLOGY

• Innovative rackmount technology with power delivery to every rack.
• Unique design that powers up to 16 racks with one RPDU.
• Powerful design, delivers up to 50 kW in one compact unit.
• 16 plug and play output receptacle field expandable.
• Compact design, 10 U with several mounting options.
• Advanced energy meter.
• Option for branch circuit monitoring.

DESIGN

• Can be installed within a few hours.
• The RPDU is load tested to 100% of its capacity.
• Load additions with no additional costs or downtime.
• Easily relocatable to another rack.
• Reduces under floor conduit congestion.
• Advanced energy monitor.
• Available in single or three phase power.
• Knockouts on top and bottom for remote distribution.
• Reduces breaker space usage in main panels and PDUs.
• UL listed product

SPECS

• Single or three Phase input and output power.
• Voltage: 208/120 up to 400/230 VAC, 50/60Hz,
• Current: Up to 150A for 1N configuration.
• Extreme high power, up to 50 kW in one small unit.
• Output receptacles: L5, L6, L14, L21, IEC 13, 19 or 309.

Remote Power Distribution Unit

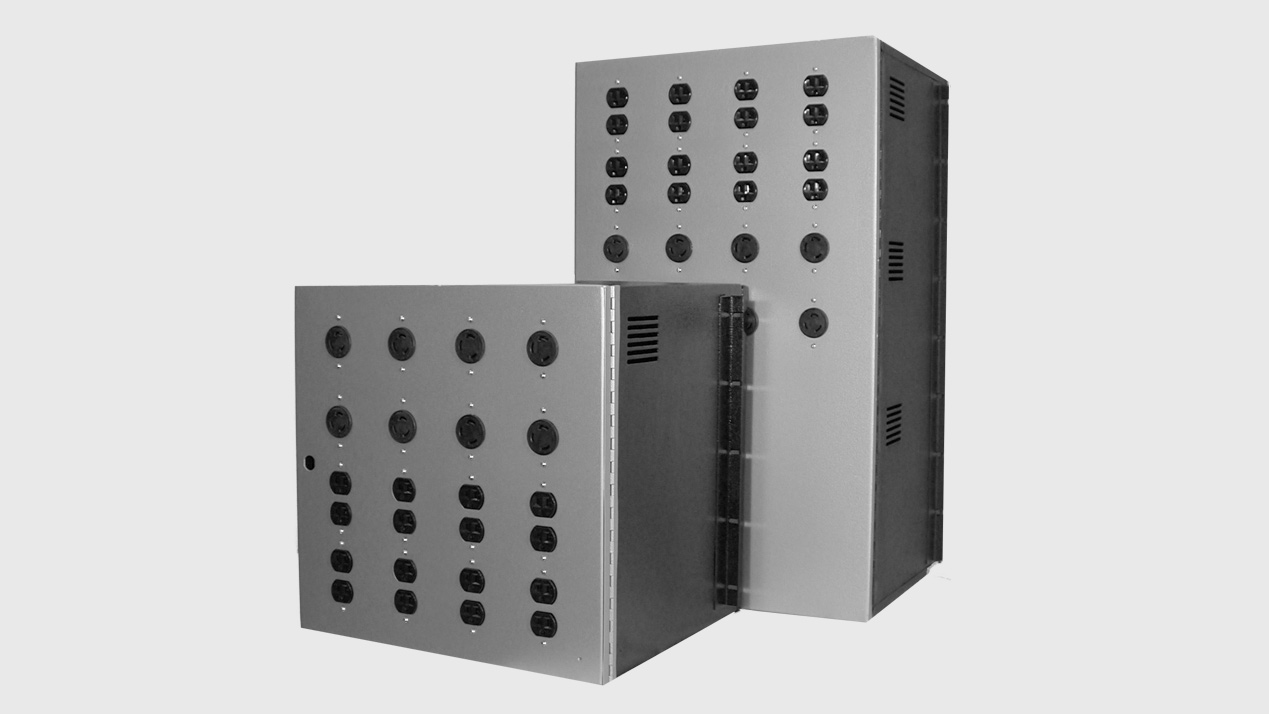

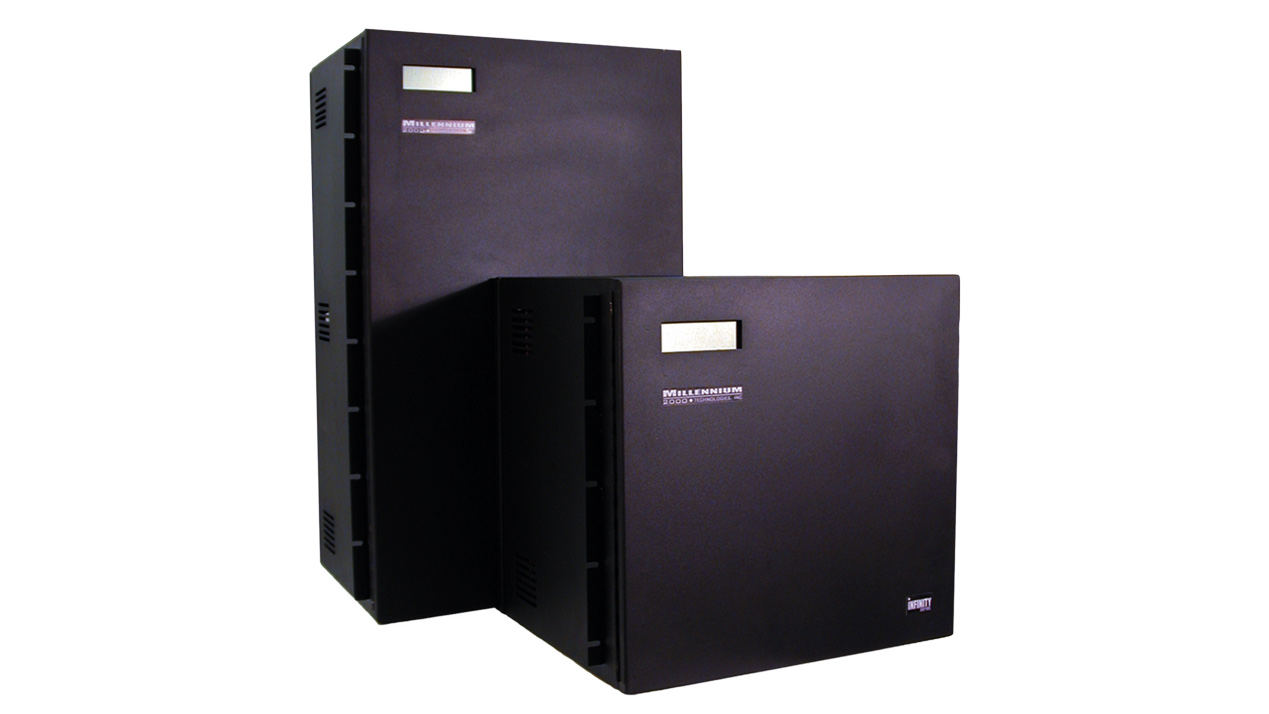

The RPDU is available in a 17U or 10U high configuration. It is designed with a complete single or three phase circuit breaker panel, advanced metering, and up to 16 internal plug and play output receptacles and 24 external field expandable receptacles that can deliver up to 50 KVA.

BENEFITS

  • Rack mountable high power design powers up to 16 racks
  • 1N that delivers up to 150 Amps three phase
  • Rated at 208/120 VAC, 60 Hz up to 54kW
  • Designed with16internal plug and play output receptacles
  • Field expandable up to 42 output receptacles
  • Equipped with energy monitoring meter
  • Available in three or single phase configuration
A Powerful Connection (TM)
Data center rack power distribution made easier

GENERAL

SCOPE

These specifications describe requirements for a rack mountable power distribution cabinet, supplying power to sensitive loads. It shall include all equipment to properly interface the AC power source to the intended load.

Furnished factory assembled Rack Mountable Power Distribution Unit (RPDU) in accordance with the following specification with all components to conform to relevant standards of manufacturing and construction, including but not limited to:

• Institute of Electrical and Electronics Engineers (IEEE)
• National Electrical Code (NEC)
• National Electrical Manufacturers Association (NEMA)
• National Fire Protection Association (NFPA)
• Underwriters Laboratories (UL)

STANDARDS

The specified system shall be designed, manufactured, and tested in compliance with UL 67 standards.
The system shall safely withstand without misoperation or damage:

• Transient voltage surges on the AC power input as defined by ANSI/IEEE C62.41 for Category B3 locations (high surge exposure industrial and commercial facilities),
• Electrostatic discharges (ESD) up to 10 kV at any point on the exterior of the unit, and
• Electromagnetic fields from portable transmitters within 3 feet (1 meter) of the unit.

SYSTEM DESCRIPTION

Electrical Requirements

Input/Output voltage shall be ((208/120), (240,120)) volts AC, ((60)) Hz, three-phase, four-wire-plus-ground or single phase, three-wire-plus-ground.

Environmental Requirements

Storage temperature range shall be -55 to +85°C (-67 to +185°F).
Operating temperature range shall be 0 to 40°C (+32 to 104°F).
Operation shall be reliable in an environment with 0% to 95% noncondensing relative humidity.
The audible noise level of the specified system shall be less than 45dBA.

DOCUMENTATION

Drawings

Wiring diagrams and drawings of major components shall be furnished.

Spare Parts

A list of recommended spare parts shall be supplied at the customer’s request.

User’s List

An in service user’s list shall be furnished upon request.

WARRANTY

The manufacturer shall provide a one-year warranty against defects in material and workmanship for 12 months after initial start-up or 18 months after ship date, whichever occurs first. (Refer to the Warranty Statement for details.)

QUALITY ASSURANCE

The specified system shall be factory tested before shipment. Testing shall include, but shall not be limited to: Quality Control Checks, “Hi Pot” Test, two times rated voltage plus 1000 volts, per UL requirements (Metering Calibration Tests), and load test of individual receptacles within the unit.

PRODUCT

COMPONENTS

Frame Construction and Enclosure

The frame shall be constructed of steel and pop riveted and/or welded to provide a strong substructure. The cabinet shall be a rack mountable NEMA type 1 enclosure and meet IP20 requirements.The unit shall have lockable doors. A minimum of 32 cable/conduit openings shall be provided in addition to 16 each output receptacles within the enclosure. All service shall be capable of being performed with access to the front and rear. Retrofitting additional power distribution cables shall require access to the front or rear of the unit only. A tool shall be required to remove the exterior panels that access the hazardous voltage area of the unit. Doors shall provide access to the main panel board circuit breakers and to all output circuit breakers. The color of the exterior doors and panels shall be manufacturer’s standard color.

The unit shall be naturally convection-cooled. No fans for forced-air cooling system shall be used. The convection cooling method shall allow continuous full-load operation. Heat rejection shall be through a screened protective side openings that prohibits entry of foreign material.

The cabinet dimensions shall be a maximum of 17.5 in Wide by 17.5 in. High by 15 in. deep for the 24 circuit RPDU and 17.5 in Wide by 30 in. High by 15 in. deep for the 42 circuit RPDU. The distributed weight shall be less than 70 lbs for the 24 circuit RPDU and 110 lbs for the 42 circuit RPDU.

Input Power Connections

(Input power conductors shall connect to the main panel board circuit breakers or terminal blocks. Power terminals shall be provided for connection of a 150% rated neutral (1/O power cable, and ground.) (A Main Input power terminal blocks shall be provided for connection of the input power conductors, 150% rated neutral, and ground.)

Main Panel board Circuit Breaker

Distribution panel board shall be protected by a main panel board circuit breaker. The breaker shall be UL listed and IEC rated for use at the system voltage.

Distribution Panel boards

The specified system shall contain one vertically mounted panel board for distribution to the intended receptacles and/or loads. The panel board shall be accessed from the front of the unit. The panel board shall be totally enclosed with a removable accent panel that provides access to that panel board without exposing other portions of the unit. The accent panel shall properly fit over the branch breakers. The panel board shall have a rating of minimum 125 amperes, with an overall short-circuit current rating of 10,000 RMS symmetrical amperes. The panel board shall provide a total of (39) single-pole branch circuit breaker positions for the 42 circuit RPDU and a total of (21) single-pole branch circuit breaker positions for the 24 circuit RPDU. The panel board shall include separate isolated neutral and safety-ground bus bars for the neutral and safety-ground connections for at least 42 output circuits for the 42 circuit RPDU and at least 24 output circuits for the 24 circuit RPDU. The neutral bus bar shall be sized for at least 1.50 times the panel board full load rating to accommodate high harmonic neutral currents associated with single-phase nonlinear loads.

Branch Circuit Breakers

Each load circuit shall be protected by an individual branch circuit breaker. Single-pole, two-pole, and three-pole [(plug-in) (bolt-on)] type branch breakers up through 100 amperes shall be utilized. Each branch circuit breaker shall provide over current protection and shall clearly indicate the “ON”, “OFF”, and “TRIPPED” positions. All branch circuit breakers shall have a minimum interrupting capacity of [(10,000) (6,000)] RMS symmetrical amperes at [(120/208) (120/240)] VAC. Each branch circuit breaker shall be sized in accordance with the NEC and shall be UL listed. Branch circuit breakers shall have an associated directory label identifying the branch circuit number and the equipment being served.

Output Distribution

The output of each circuit is internally wired to a dedicated receptacle on the back of the RPDU. The cable supplying each remote load shall consist of UL/CSA listed liquid-tight flexible metal conduit containing the required THHN copper insulated power, neutral, and parity-sized ground conductors. The flexible conduit shall be liquid-tight, insulated, and shielded to minimize electrical or mechanical disturbances to the conductors. The length of each cable and the type of receptacle/termination shall be as specified on the detailed cable schedule. Each output distribution cable shall be permanently labeled at each end of the cable with the assigned circuit number and receptacle type, equipment identification, and cable length. Each cable shall be thoroughly factory-checked and factory-tested. Tests shall include continuity, phase rotation and a Hi Pot test at twice rated circuit voltage plus 1000 volts. All output cables can be wound on spools mounted on casters to facilitate handling and installation. Each cable shall be a UL listed assembly.

ACCESSORIES (OPTIONAL COMPONENTS)

Current Monitoring Panel

The current monitoring panel shall consist of a 4 digit high visibility Liquid Crystal Display (LCD) to monitor current parameters. Front and rear LCD’s shall be provided for operator interface. The three phase or single phase currents for the RPDU shall be displayed. The display shall be accessible without opening the door. All currents shall be monitored using true RMS measurements for accurate representation of non-sinusoidal waveforms typical of computers and other sensitive loads.

Doors

The enclosure shall be provided doors that allow the operator to access the main and branch breakers.

Plug-in Main Breakers

Plug-in main panel board circuit breakers shall be provided to allow easy replacement.

Export Crating

Heavy-duty solid wood crating shall be provided to meet international requirements regarding package strength and special markings for overseas shipments.

Execution

Factory start-up, preventive maintenance, and full service for the specified system shall be available upon request. The manufacturer shall directly employ a service organization of factory- trained field service personnel dedicated to the start-up, maintenance, and repair of the manufacturer’s power equipment. The manufacturer shall maintain a dispatch center 24 hours per day, 365 days per year, to minimize service response time and to maximize availability of qualified service personnel.
Remote Power Distribution Unit (RPDU) three phase models specifications

Three (3) Phase, model T3B10024 A-D, T3B10042 A-D, T10024 A-D, T10042 A-D

Remote Power Distribution Unit (RPDU) three phase models specifications
• Input: 208/120 or 240/120 VAC, Three (3) Phase, 3 Wire, Neutral, & Ground
• KVA/KW: Input Breaker 3 Pole 100 Amps at 208 VAC, 36 Kva 100% rated, 28.8 kVA 80% rated.
• Option: No main breaker (main lug, feeder breaker from customer panel) 125 Amps at 208 VAC, 45 kva 100% rated, 36 kva 80% rated
• Main meter per phase: Volts, Amps, KVA, KVAR, KW, KWH
• Warranty: One Year
• Optional main assembly metering: Volts, Amps, KW, Hz. (Wireless Wi-Fi is available)
• Standard current meter/measurement for each output receptacle.
• Hot interchangeable/swappable output distribution modules which configurable receptacle.
• Warranty: One Year
• UL 60950-1, NEMA 1 enclosure.
10 U High, three (3) phase RPDU Metered:
T3B10024-A:

T3B10024-B:
T3B10024-C1:
T3B10024-C2:
T3B10024-D1:
T3B10024-D2:

(2) L6-30, (2) L6-20, (2) L5-30, (2) L5-20, (14) 5-20
(2) L6-30, (14) L5-20
(12) L6-20
(12) L6-30
(8) L21-20
(8) L21-30
10 U High, three (3) phase RPDU No-Metered:
T3B10024-A:

T3B10024-B:
T3B10024-C1:
T3B10024-C2:
T3B10024-D1:
T3B10024-D2:

(2) L6-30, (2) L6-20, (2) L5-30, (2) L5-20, (14) 5-20
(2) L6-30, (14) L5-20
(12) L6-20
(12) L6-30
(8) L21-20
(8) L21-30
17 U High, three (3) phase RPDU Metered:
T3B10024-A:

T3B10024-B:
T3B10024-C1:
T3B10024-C2:
T3B10024-D1:
T3B10024-D2:

(2) L6-30, (2) L6-20, (2) L5-30, (2) L5-20, (14) 5-20
(2) L6-30, (14) L5-20
(12) L6-20
(12) L6-30
(14) L21-20
(14) L21-30
17 U High, three (3) phase RPDU No-Metered:
T3B10024-A:

T3B10024-B:
T3B10024-C1:
T3B10024-C2:
T3B10024-D1:
T3B10024-D2:

(2) L6-30, (2) L6-20, (2) L5-30, (2) L5-20, (14) 5-20
(2) L6-30, (14) L5-20
(12) L6-20
(12) L6-30
(14) L21-20
(14) L21-30
